BL4-2 Biological Small Angle Scattering/Diffraction

Built-in Bonse-Hart Geometry USAXS Setup

setup drawing

schematic

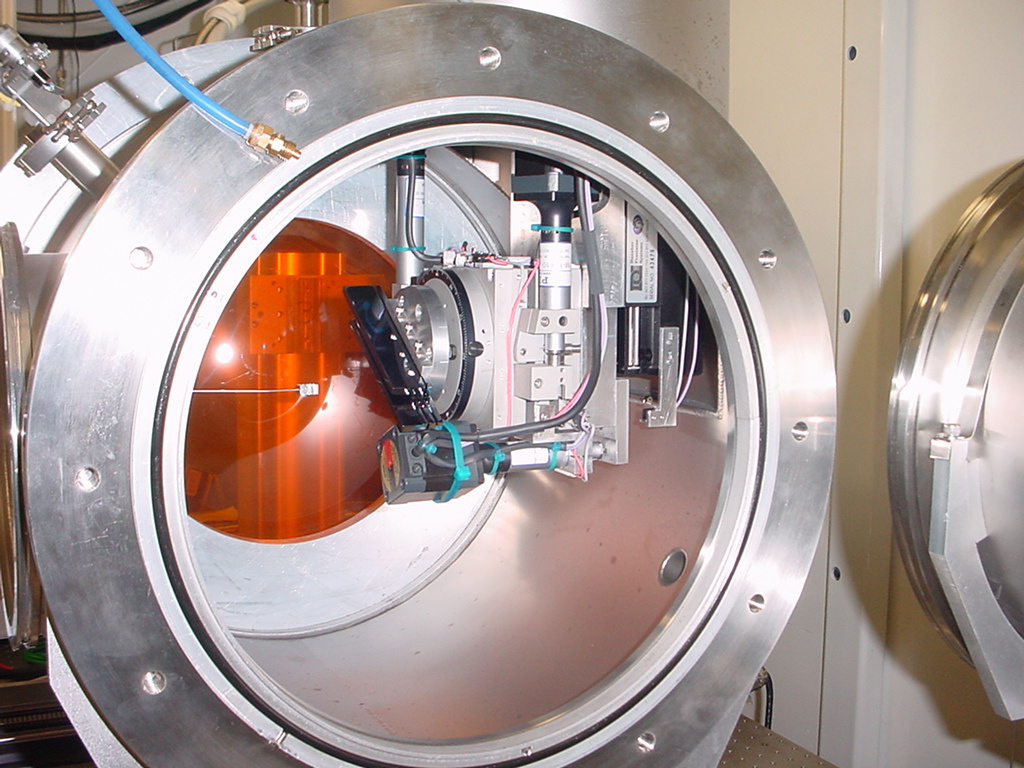

Analyser image

Integrated channel-cut crystal (USAXS analyzer)

      • a pair of retractable channel-cut Si(111) crystals
      • dynamic range 11-12 orders of magnitude
      • full width 10-4 maximum 66µrad (1/D ~ 4µm)
