Updates on the 4-2 Optics Upgrade (March 3, 2008)

The following pictures were taken on March 3, 2008.

Slit Mono Shutter image

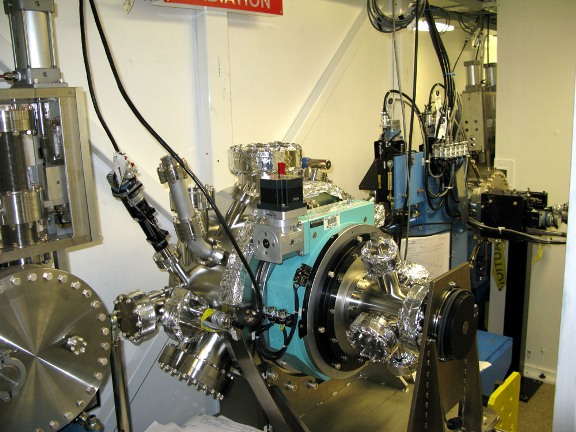

Newly installed hutch beam stopper (left), liquid nitrogen-cooled monochromator (middle),
monochromator slit (right) for BL4-2 in the optics hutch. The beam travels right to left.

Hutch Tables Image

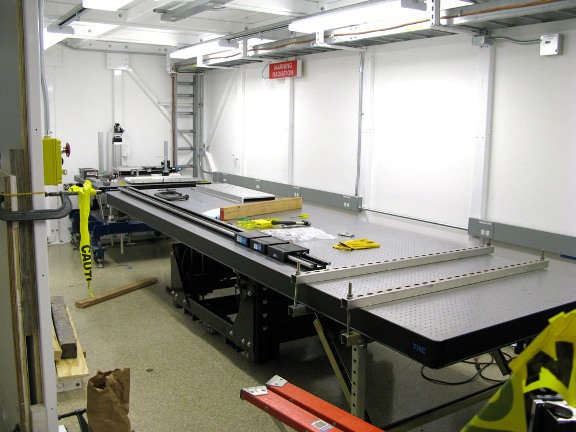

Upgraded hutch tables are ready for installing new SAXS/D camera

Hutch Door Frame image

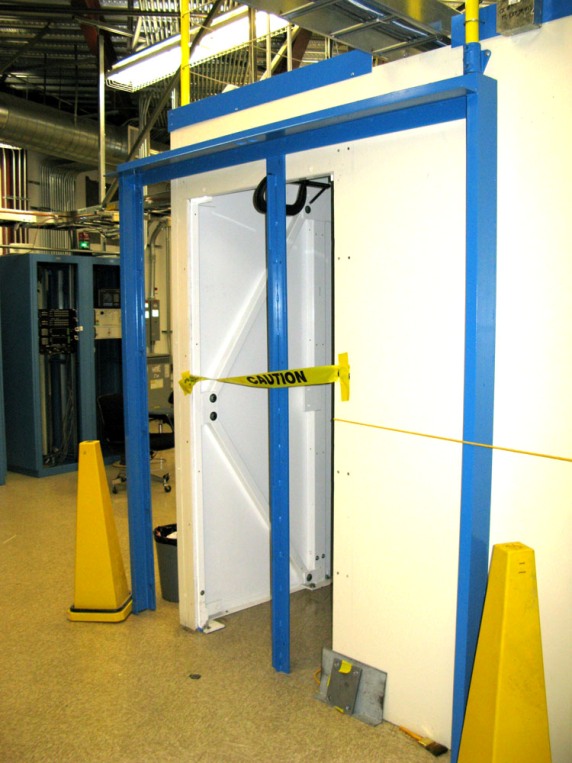

A door frame being installed on the hutch wall

Motor Drivers Image

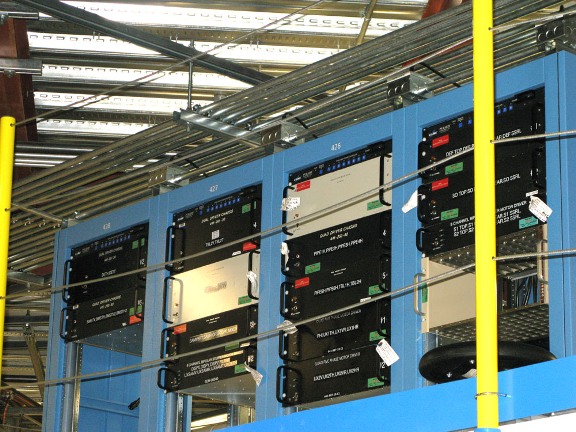

Motor drives have been install on the hutch roof
