OVERVIEW:
SSRL has shared folders available on SLAC servers.

These folders are available from SSRL or from offsite.

Some SSRL Group folders and Staff Home Direct orie are present on these servers.

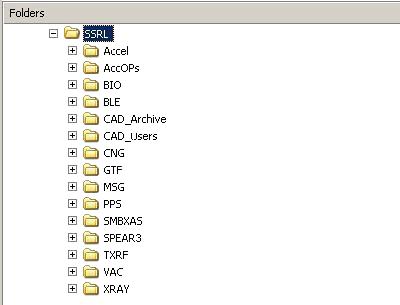

When logging on with a SLAC Windows account, SSRL Group folders appear at:

V:\SSRL

When logging on with a SLAC Windows account, staff will have their Home Directory at:

Z:

To see these folders when logging on with an SSRL account or when offsite, you'll need to map the shares using your SLAC account.

Scripts are available to automate these mappings.



GROUP FOLDER MAPPING:
To connect to a SLAC folder while logging on with a SSRL account -

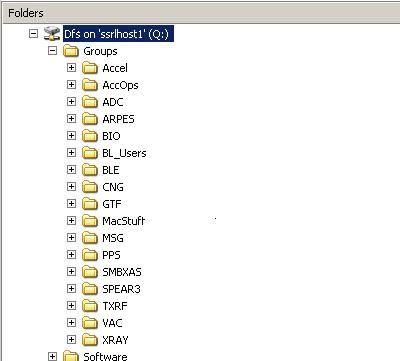

Go to the corresponding folder under Q:\Groups.

Q:\Groups

Double click on "Get Foldername.bat"

For example,

The script will connect to the SLAC server with your SLAC Windows account.

It will expect that your SLAC username is the same as your SSRL username.
If your SLAC password is different from your SSRL account, then you will be prompted for a password.

If your accounts are spelled diffe rently, you can map the folder manually.



HOME DIRECTORY MAPPING:
Staff with SLAC accounts have Home Directories on SLAC servers.

If logging on with an SSRL account (or if offsite and a VPN session has been started),
click on the following link -  Get_SLAC_HomeDir.bat

When logging on with an SSRL account, the script is also available at Q:\Groups\CNG\Pub.

The script will expect that your SLAC username is the same as the username of your currently logged on session.  If you're offsite and logged on locally, then your local account must have the same spelling as your SLAC account.



MANUAL MAPPING:
SLAC folders may be manually mapped from non-SLAC domain computers.
(If offsite, start a VPN session before mapping a folder)

From the Tools menu of Windows Explorer,
Select "Map Network Drive"

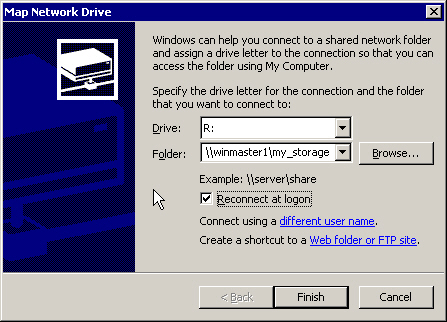

The "Map Network Drive" window will display.



In the "Drive" field, < br>Click the dropdown list arrow and Select a drive letter

In the "Folder" field,
For Group folders - enter "\\winmaster1\My_Storage\Groups\"

To map to a specific folder under Groups, extend the path to that folder.

E.g.
"\\winmaster1\My_Storage\Groups\SSRL\Beamline Computing"
"\\winmaster1\My_Storage\Groups\SSRL\BLE"
"\\winmaster1\My_Storage\Groups\SSRL\StohrGroup"
"\\winmaster1\My_Storage\Groups\SSRLAdmin"
"\\winmas ter1\My_Storage\Groups\BLD"
"\\winmaster1\My_Storage\Groups\SSRL-CAD"


For Home Directories - enter "\\winmaster1\My_Storage\Users\"

To map to a specific Home Directory under Users, extend the path to that folder.

E.g.
"\\winmaster1\My_Storage\Users\a\username"
"\\winmaster1\My_Storage\Users\ra-rm\username"
"\\winmaster1\My_Storage\Users\sa-sm\username"
"\\winmaster1\My_Storage\Users\z\username"
&nb sp;


Place a check in the box for "Reconnect at Logon"

Click on the link for "Connect using a different user name"

The "Connect As..." window will display.



In the "User name" field,
Enter your SLAC account as "SLAC\username"

In the "Password" field,
Enter your SLAC Wi ndows password

Click OK
Click Finish




ADDITIONAL  INFO:
Introduction to Computing with Windows at SLAC
